EMS Controller Set
- Category: Microgrid & Industry EMS
- Application: Engergy Monitoring, Load Management, Demand Response, Energy Efficiency Optimization, Renewable Energy Integration, Forecasting and Scheduling
- Benefits: Reduced Energy Costs, Improved Energy Efficiency, Automated Control, Lower Carbon Emissions, Enhanced System Reliability

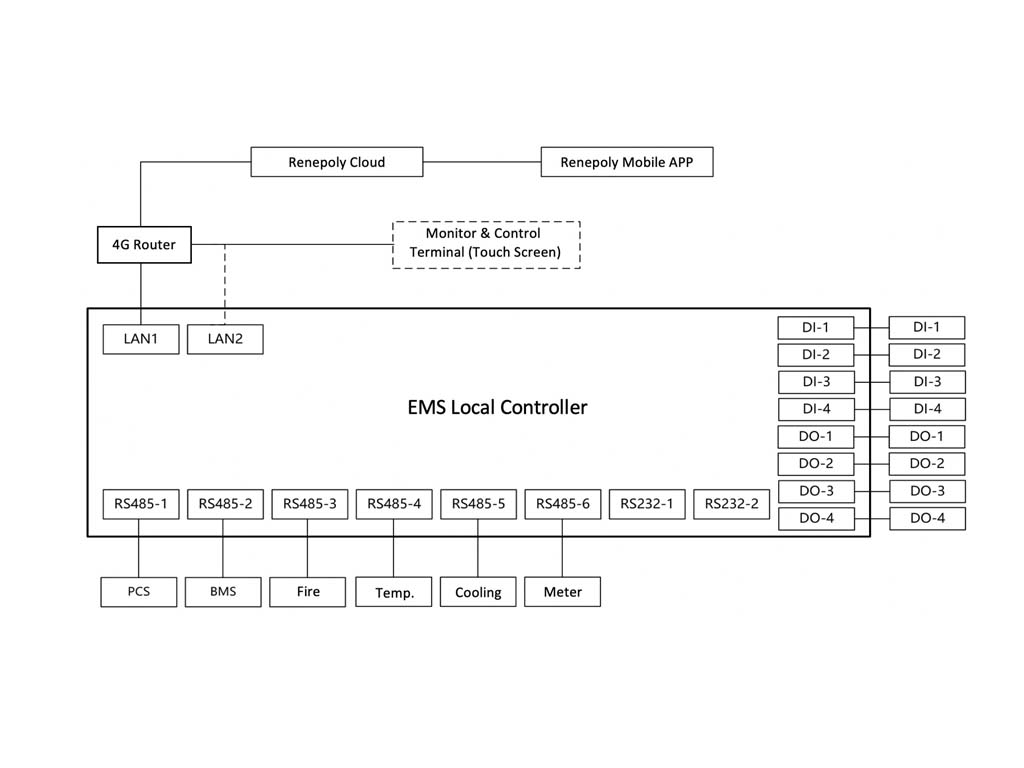

- Hardwares: Local Controller, Router, Switch, Local Display and Control Terminal
- Software Operation System: Windows, iOS and Android
- Platforms URL: https://ems.renepoly.com
- Features: Functionalities and Features
- Data Sheet: EMS Controller Set Datasheet
- User Manual: EMS Controller Set User Manual
Technical Parameters
| Main Power Supply | AC220V, 20A (30mA Earth leakage protection) |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, Digital |
| Modbus RTU Inputs | 8 Nos |
| Modbus TCP/IP Inputs | 2 Nos |
| Digital Inputs/Outputs | 4 DI, 4 DO |
| Back-up Supply (UPS not supplied) | AC Input of 230VAC, DC Output of 23VDC (10A max.) |
| Power Consumption | 36W |
| Touch Screen | 10.1-inch |
| Operating System | Linux 3.12 |
| CPU & Controller | ARM9 400MHz |
| Memory | 128MB DDR2 SDRAM, 256MB NAND Flash |
| Weight (kg) | ≤10kg |
| Mounting | Rail Mounted |
| Operating Temperature | -40～80 ℃ |
| Operating Humidity | 5～95% RH |
| Installation Location | Indoor |
| Anti-corrosion Level | C3/C5 |
